java.lang.Object
- java.lang.Enum<SoLogicalImageProcessing.LogicalOperators>
- - com.openinventor.imageviz.engines.arithmeticandlogic.logicaloperations.SoLogicalImageProcessing.LogicalOperators

All Implemented Interfaces:

IntegerValuedEnum, java.io.Serializable, java.lang.Comparable<SoLogicalImageProcessing.LogicalOperators>

Enclosing class:

SoLogicalImageProcessing
```
public static enum SoLogicalImageProcessing.LogicalOperators
extends java.lang.Enum<SoLogicalImageProcessing.LogicalOperators>
implements IntegerValuedEnum
```

Enum Constant Summary

Enum Constants
Enum Constant	Description
`AND`	The AND logical operator computes the logical and between two images and .
`NAND`	The NAND logical operator is the not and of two images and .
`NOR`	The NOR logical operator is the not or of two images and .
`NXOR`	The NXOR logical operator is the logical equivalence, i.e.
`OR`	The OR logical operator computes the logical or between two images and .
`SUB`	The SUB logical operator is the logical difference between images and as described on the figure below.
`XOR`	The XOR logical operator is the exclusive or between two images and as described on the figure below.

Method Summary

All Methods Static Methods Instance Methods Concrete Methods
Modifier and Type	Method	Description
`int`	`getValue()`	Returns the integer value of the enum constant.
`static SoLogicalImageProcessing.LogicalOperators`	`valueOf(int val)`	Returns the enum constant of this type with the specified integer value
`static SoLogicalImageProcessing.LogicalOperators`	`valueOf(java.lang.String name)`	Returns the enum constant of this type with the specified name.
`static SoLogicalImageProcessing.LogicalOperators[]`	`values()`	Returns an array containing the constants of this enum type, in the order they are declared.

Methods inherited from class java.lang.Enum
compareTo, equals, getDeclaringClass, hashCode, name, ordinal, toString, valueOf

Methods inherited from class java.lang.Object
getClass, notify, notifyAll, wait, wait, wait

- Enum Constant Detail
  - AND
```
public static final SoLogicalImageProcessing.LogicalOperators AND
```
    The AND logical operator computes the logical and between two images and . On a binary image, it is equivalent to a minimum operation, or to the intersection of two sets, as it appears in the boolean table and the figure below.
  - OR
```
public static final SoLogicalImageProcessing.LogicalOperators OR
```
    The OR logical operator computes the logical or between two images and . On a binary image, it is equivalent to a maximum operation, or to the union of two sets, as it appears in the boolean table of the figure.
  - XOR
```
public static final SoLogicalImageProcessing.LogicalOperators XOR
```

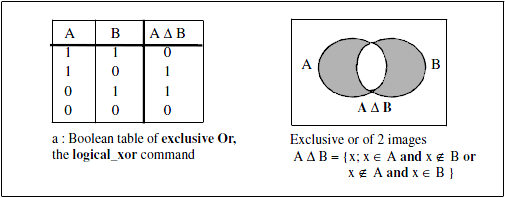

    The XOR logical operator is the exclusive or between two images and as described on the figure below.
  - NOR
```
public static final SoLogicalImageProcessing.LogicalOperators NOR
```
    The NOR logical operator is the not or of two images and .
  - NAND
```
public static final SoLogicalImageProcessing.LogicalOperators NAND
```
    The NAND logical operator is the not and of two images and .
  - NXOR
```
public static final SoLogicalImageProcessing.LogicalOperators NXOR
```

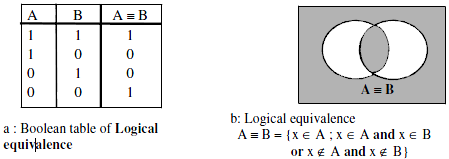

    The NXOR logical operator is the logical equivalence, i.e. : Not of the exclusive or of two images and .\ The logical equivalence of two binary sets A and B is described in the boolean table of the figure below.
  - SUB
```
public static final SoLogicalImageProcessing.LogicalOperators SUB
```
    The SUB logical operator is the logical difference between images and as described on the figure below. Note that logical difference is the only non commutative logical operation, i.e. .
- Method Detail
  - values
```
public static SoLogicalImageProcessing.LogicalOperators[] values()
```
    Returns an array containing the constants of this enum type, in the order they are declared. This method may be used to iterate over the constants as follows:
    for (SoLogicalImageProcessing.LogicalOperators c : SoLogicalImageProcessing.LogicalOperators.values()) System.out.println(c);
    Returns:

    an array containing the constants of this enum type, in the order they are declared
  - valueOf
```
public static SoLogicalImageProcessing.LogicalOperators valueOf(java.lang.String name)
```
    Returns the enum constant of this type with the specified name. The string must match exactly an identifier used to declare an enum constant in this type. (Extraneous whitespace characters are not permitted.)

    Parameters:

    name - the name of the enum constant to be returned.

    Returns:

    the enum constant with the specified name

    Throws:

    java.lang.IllegalArgumentException - if this enum type has no constant with the specified name

    java.lang.NullPointerException - if the argument is null
  - valueOf
```
public static SoLogicalImageProcessing.LogicalOperators valueOf(int val)
```
    Returns the enum constant of this type with the specified integer value

    Returns:

    the enum constant of this type with the specified integer value.
  - getValue
```
public int getValue()
```
    Description copied from interface: IntegerValuedEnum

    Returns the integer value of the enum constant.

    Specified by:

    getValue in interface IntegerValuedEnum

    Returns:

    the integer value of the enum constant.
