Package com.openinventor.imageviz.engines.geometryandmatching.patternrecognition
The correlation filters allow you to specify a correlation step.
The correlation filters allow the matching of rectangular or irregular patterns. Non-rectangular patterns are implemented with mask AOIs.
Use SoGrayscaleCorrelationProcessing2d
for grayscale image correlation and SoBinaryCorrelationProcessing2d
for binary image correlation.
SoGrayscaleCorrelationProcessing2d
allows for local luminosity and / or contrast normalization. There are 4 different correlation types (see SoGrayscaleCorrelationProcessing2d.CorrelationMode
) :
- DIRECT: Direct correlation (no normalization).
- MEAN: Mean normalized correlation (luminosity).
- VARIANCE: Variance normalized correlation (contrast).
- MEAN_VARIANCE: Mean and variance normalized correlation (luminosity and contrast).
We perform the correlation between a input image, , and a kernel, . The output image is an floating point image, . The correlation coefficient at location is given by a local calculation between the model and a pattern extraction from the input image, . The pattern location is and its dimension is . The actual calculation depends on image type:
- logical for
SoBinaryCorrelationProcessing2d
, - multiplication for
SoGrayscaleCorrelationProcessing2d
withMULTIPLY
, - difference
SoGrayscaleCorrelationProcessing2d
withSUBSTRACT
or - sign change criteria
SoGrayscaleCorrelationProcessing2d
withSIGNCHANGE
.
It also depends on the correlation normalization TYPE as shown below. When a part of the pattern lies beyond the edge of the image the correlation is not performed on the image border. SCorrelation filters provide a step parameter (see SoGrayscaleCorrelationProcessing2d.OffsetMode
and SoBinaryCorrelationProcessing2d.OffsetMode
) which speeds up the operation by calculating 1 value out of each step, as shown in Figure 1.
The luminosity and contrast normalization is controlled by one of the 4 correlation types:
- DIRECT: Direct correlation (no normalization).
- MEAN: Mean normalized correlation (luminosity).
- VARIANCE: Variance normalized correlation (contrast).
- MEAN_VARIANCE: Mean and variance normalized correlation (luminosity and contrast).
Output Image Normalization During the correlation the minimum and the maximum values are calculated . At the end of the filter processus, the correlation image is normalized between -1 and 1. The normalization depends on the following algorithm:

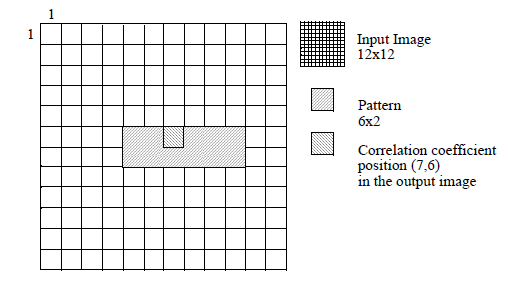

Position of the Correlation Coefficients If the dimensions are odd, the position of the correlation coefficient is centerd in the pattern and corresponds to a pixel position. If the dimensions are even, the position of the correlation coefficient is the closest pixel position to the top and the left.
Correlation with a Non-Rectangular Pattern If a binary image is attached as a mask to the kernel image , the correlation is made locally between and . The mean and variance calculation are made on and on .
Output Data The correlation filters return a floating point correlation image. At the end of the processus, this correlation image is converted between -1 and 1 (worst and best matching detected). The non-calculated points are set to -3e38. Then, the
SbCorrelationDetail
contains: - the position of the best matching (
matchingPositionX
,matchingPositionY
), - the minimum and the maximum values of the correlation image before the conversion (
minComputed
,maxComputed
), - the theoretical minimum and maximum correlation values before the conversion (
minTheoretical
,maxTheoretical
).
-
Class Summary Class Description SoBinaryCorrelationProcessing2d SoBinaryCorrelationProcessing2d
engine.SoBinaryCorrelationProcessing2d.SbCorrelationDetail Results details of image correlation.SoGrayscaleCorrelationProcessing2d SoGrayscaleCorrelationProcessing2d.SbCorrelationDetail Results details of image correlation. -
Enum Summary Enum Description SoBinaryCorrelationProcessing2d.OffsetModes See Correlation.SoGrayscaleCorrelationProcessing2d.CorrelationCriterions See Correlation.SoGrayscaleCorrelationProcessing2d.CorrelationModes See Correlation and for eachSoGrayscaleCorrelationProcessing2d.CorrelationCriterion
.SoGrayscaleCorrelationProcessing2d.OffsetModes This field is ignored in the multiply correlation mode.
