SoDilationCubeProcessing

java.lang.Object
- com.openinventor.inventor.Inventor
- - com.openinventor.inventor.misc.SoBase
  - - com.openinventor.inventor.fields.SoFieldContainer
    - - com.openinventor.inventor.engines.SoEngine
      - com.openinventor.imageviz.engines.SoImageVizEngine

        com.openinventor.imageviz.engines.mathematicalmorphology.erosionanddilation.SoDilationCubeProcessing

All Implemented Interfaces:

SafeDisposable
```
public class SoDilationCubeProcessing
extends SoImageVizEngine
```
SoDilationCubeProcessing engine. The SoDilationCubeProcessing engine performs a dilation using a structuring element matching with a cube.
For an introduction, see:
- section Morphology
- Introduction and definition for dilations

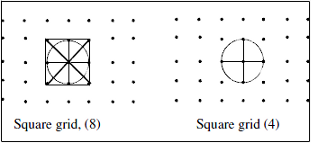

This engine uses the default structuring element of 8 pixels for a square grid.

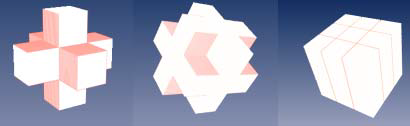

With a 3D image, this engine uses the default structuring element of 6, 18 or 26 voxels.
See Also:

SoErosionCubeProcessing File format/default: DilationCubeProcessing { computeMode MODE_AUTO neighborhood3d CONNECTIVITY_26 inImage NULL elementSize 3 } Library references: dilate

Nested Class Summary
- Nested classes/interfaces inherited from class com.openinventor.imageviz.engines.SoImageVizEngine
  SoImageVizEngine.ComputeModes, SoImageVizEngine.EventArg, SoImageVizEngine.Neighborhood3ds
- Nested classes/interfaces inherited from class com.openinventor.inventor.Inventor
  Inventor.ConstructorCommand

Field Summary

Fields
Modifier and Type	Field	Description
`SoSFEnum<SoImageVizEngine.ComputeModes>`	`computeMode`	Select the compute Mode (2D or 3D or AUTO) .
`SoSFInt32`	`elementSize`	The half size of the structuring element.
`SoSFImageDataAdapter`	`inImage`	The input image.
`SoSFEnum<SoImageVizEngine.Neighborhood3ds>`	`neighborhood3d`	In 3D configuration (see `computeMode`), the neighborhood connectivity defines the connectivity considered for processing adjacent voxels.
`SoImageVizEngineOutput<SoSFImageDataAdapter,SoImageDataAdapter>`	`outImage`	The output image.

Fields inherited from class com.openinventor.imageviz.engines.SoImageVizEngine
onBegin, onEnd, onProgress

Fields inherited from class com.openinventor.inventor.Inventor
VERBOSE_LEVEL, ZeroHandle

Constructor Summary

Constructors
Constructor Description

SoDilationCubeProcessing()
Constructor.

Method Summary
- Methods inherited from class com.openinventor.imageviz.engines.SoImageVizEngine
  abortEvaluate, isEvaluating, startEvaluate, waitEvaluate
- Methods inherited from class com.openinventor.inventor.engines.SoEngine
  copy, getByName, getOutput, getOutputName
- Methods inherited from class com.openinventor.inventor.fields.SoFieldContainer
  copyFieldValues, copyFieldValues, enableNotify, fieldsAreEqual, get, getAllFields, getEventIn, getEventOut, getField, getFieldName, hasDefaultValues, isNotifyEnabled, set, setToDefaults
- Methods inherited from class com.openinventor.inventor.misc.SoBase
  dispose, getName, isDisposable, isSynchronizable, setName, setSynchronizable, touch
- Methods inherited from class com.openinventor.inventor.Inventor
  getNativeResourceHandle
- Methods inherited from class java.lang.Object
  equals, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

- Field Detail
  - computeMode
```
public final SoSFEnum<SoImageVizEngine.ComputeModes> computeMode
```
    Select the compute Mode (2D or 3D or AUTO) . Default is MODE_AUTO
  - neighborhood3d
```
public final SoSFEnum<SoImageVizEngine.Neighborhood3ds> neighborhood3d
```
    In 3D configuration (see computeMode), the neighborhood connectivity defines the connectivity considered for processing adjacent voxels. . Default is CONNECTIVITY_26.
  - inImage
```
public final SoSFImageDataAdapter inImage
```
    The input image. Default value is NULL. Supported types include: grayscale binary label color image.
  - elementSize
```
public final SoSFInt32 elementSize
```
    The half size of the structuring element. A structuring element always has an odd side length (3x3, 5x5, etc) which is defined by 2 * elementSize + 1. Default value is 3.
  - outImage
```
public final SoImageVizEngineOutput<SoSFImageDataAdapter,SoImageDataAdapter> outImage
```
    The output image. Default value is NULL. Supported types include: grayscale binary label color image.
- Constructor Detail
  - SoDilationCubeProcessing
```
public SoDilationCubeProcessing()
```
    Constructor.
