Package com.openinventor.imageviz.engines.mathematicalmorphology.hitormissandskeleton

Class SoPruneProcessing2d

java.lang.Object

com.openinventor.inventor.Inventor

com.openinventor.inventor.misc.SoBase

com.openinventor.inventor.fields.SoFieldContainer

com.openinventor.inventor.engines.SoEngine

com.openinventor.imageviz.engines.SoImageVizEngine

com.openinventor.imageviz.engines.mathematicalmorphology.hitormissandskeleton.SoPruneProcessing2d

All Implemented Interfaces:

SafeDisposable

public class SoPruneProcessing2d
extends SoImageVizEngine

SoPruneProcessing2d engine. The SoPruneProcessing2d engine prunes the result of a skeletonization.

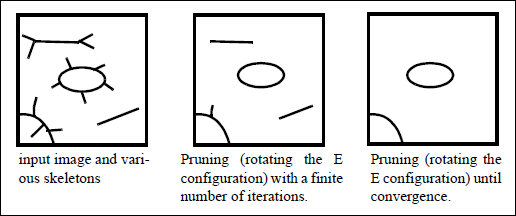

The skeleton is very sensitive to small distortions on the edges of the objects, generating artifacts called prunes. The SoPruneProcessing2d engine eliminates these prunes by thinning with the E configuration until convergence. The structuring element is:

The problem is to determine the number of iterations for the pruning as thinning until convergence will remove all the skeletons except loops and branches intersecting the frame of the image.

See also: SoSkeletonProcessing, SoTriplePointsProcessing2d, SoEndPointsProcessing2d.

File format/default:

PruneProcessing2d {

inImage

NULL

}

Library references: prune

Nested Class Summary

Nested classes/interfaces inherited from class com.openinventor.imageviz.engines.SoImageVizEngine

SoImageVizEngine.ComputeModes, SoImageVizEngine.EventArg, SoImageVizEngine.Neighborhood3ds

Nested classes/interfaces inherited from class com.openinventor.inventor.Inventor

Inventor.ConstructorCommand

Field Summary

Fields

Modifier and Type	Field	Description
SoSFImageDataAdapter	inImage	The input image.
SoImageVizEngineOutput<SoSFImageDataAdapter,SoImageDataAdapter>	outImage	The output image.

Fields inherited from class com.openinventor.imageviz.engines.SoImageVizEngine

onBegin, onEnd, onProgress

Fields inherited from class com.openinventor.inventor.Inventor

VERBOSE_LEVEL, ZeroHandle

Constructor Summary

Constructors

Constructor	Description
SoPruneProcessing2d()	Constructor.

Method Summary

Methods inherited from class com.openinventor.imageviz.engines.SoImageVizEngine

abortEvaluate, isEvaluating, startEvaluate, waitEvaluate

Methods inherited from class com.openinventor.inventor.engines.SoEngine

copy, getByName, getOutput, getOutputName

Methods inherited from class com.openinventor.inventor.fields.SoFieldContainer

copyFieldValues, copyFieldValues, enableNotify, fieldsAreEqual, get, getAllFields, getEventIn, getEventOut, getField, getFieldName, hasDefaultValues, isNotifyEnabled, set, setToDefaults

Methods inherited from class com.openinventor.inventor.misc.SoBase

dispose, getName, isDisposable, isSynchronizable, setName, setSynchronizable, touch

Methods inherited from class com.openinventor.inventor.Inventor

getNativeResourceHandle

Methods inherited from class java.lang.Object

equals, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

Field Detail

inImage

public final SoSFImageDataAdapter inImage

The input image. Default value is NULL. Supported types include: grayscale binary label color image.

outImage

public final SoImageVizEngineOutput<SoSFImageDataAdapter,SoImageDataAdapter> outImage

The output image. Default value is NULL. Supported types include: grayscale binary label color image.

Constructor Detail

SoPruneProcessing2d

public SoPruneProcessing2d()

Constructor.
