Enum SoLogicalImageProcessing.LogicalOperators
- java.lang.Object
-
- java.lang.Enum<SoLogicalImageProcessing.LogicalOperators>
-
- com.openinventor.imageviz.engines.arithmeticandlogic.logicaloperations.SoLogicalImageProcessing.LogicalOperators
-
- All Implemented Interfaces:
IntegerValuedEnum
,java.io.Serializable
,java.lang.Comparable<SoLogicalImageProcessing.LogicalOperators>
- Enclosing class:
- SoLogicalImageProcessing
public static enum SoLogicalImageProcessing.LogicalOperators extends java.lang.Enum<SoLogicalImageProcessing.LogicalOperators> implements IntegerValuedEnum
-
-
Enum Constant Summary
Enum Constants Enum Constant Description AND
The AND logical operator computes the logical and between two images and .NAND
The NAND logical operator is the not and of two images and .NOR
The NOR logical operator is the not or of two images and .NXOR
The NXOR logical operator is the logical equivalence, i.e.OR
The OR logical operator computes the logical or between two images and .SUB
The SUB logical operator is the logical difference between images and as described on the figure below.XOR
The XOR logical operator is the exclusive or between two images and as described on the figure below.
-
Method Summary
All Methods Static Methods Instance Methods Concrete Methods Modifier and Type Method Description int
getValue()
Returns the integer value of the enum constant.static SoLogicalImageProcessing.LogicalOperators
valueOf(int val)
Returns the enum constant of this type with the specified integer valuestatic SoLogicalImageProcessing.LogicalOperators
valueOf(java.lang.String name)
Returns the enum constant of this type with the specified name.static SoLogicalImageProcessing.LogicalOperators[]
values()
Returns an array containing the constants of this enum type, in the order they are declared.
-
-
-
Enum Constant Detail
-
AND
public static final SoLogicalImageProcessing.LogicalOperators AND
The AND logical operator computes the logical and between two images and . On a binary image, it is equivalent to a minimum operation, or to the intersection of two sets, as it appears in the boolean table and the figure below.
-
OR
public static final SoLogicalImageProcessing.LogicalOperators OR

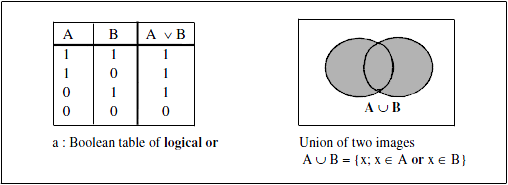

The OR logical operator computes the logical or between two images and . On a binary image, it is equivalent to a maximum operation, or to the union of two sets, as it appears in the boolean table of the figure.
-
XOR
public static final SoLogicalImageProcessing.LogicalOperators XOR

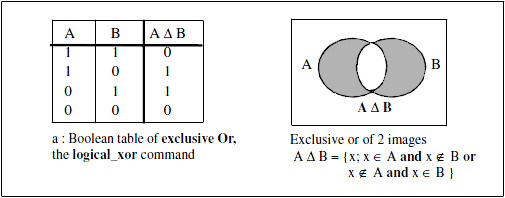

The XOR logical operator is the exclusive or between two images and as described on the figure below.
-
NOR
public static final SoLogicalImageProcessing.LogicalOperators NOR
The NOR logical operator is the not or of two images and .
-
NAND
public static final SoLogicalImageProcessing.LogicalOperators NAND
The NAND logical operator is the not and of two images and .
-
NXOR
public static final SoLogicalImageProcessing.LogicalOperators NXOR

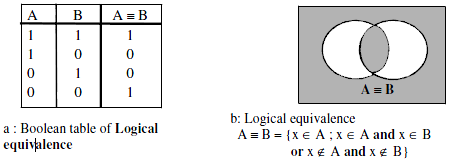

The NXOR logical operator is the logical equivalence, i.e. : Not of the exclusive or of two images and .\ The logical equivalence of two binary sets A and B is described in the boolean table of the figure below.
-
SUB
public static final SoLogicalImageProcessing.LogicalOperators SUB
The SUB logical operator is the logical difference between images and as described on the figure below. Note that logical difference is the only non commutative logical operation, i.e. .
-
-
Method Detail
-
values
public static SoLogicalImageProcessing.LogicalOperators[] values()
Returns an array containing the constants of this enum type, in the order they are declared. This method may be used to iterate over the constants as follows:for (SoLogicalImageProcessing.LogicalOperators c : SoLogicalImageProcessing.LogicalOperators.values()) System.out.println(c);
- Returns:
- an array containing the constants of this enum type, in the order they are declared
-
valueOf
public static SoLogicalImageProcessing.LogicalOperators valueOf(java.lang.String name)
Returns the enum constant of this type with the specified name. The string must match exactly an identifier used to declare an enum constant in this type. (Extraneous whitespace characters are not permitted.)- Parameters:
name
- the name of the enum constant to be returned.- Returns:
- the enum constant with the specified name
- Throws:
java.lang.IllegalArgumentException
- if this enum type has no constant with the specified namejava.lang.NullPointerException
- if the argument is null
-
valueOf
public static SoLogicalImageProcessing.LogicalOperators valueOf(int val)
Returns the enum constant of this type with the specified integer value- Returns:
- the enum constant of this type with the specified integer value.
-
getValue
public int getValue()
Description copied from interface:IntegerValuedEnum
Returns the integer value of the enum constant.- Specified by:
getValue
in interfaceIntegerValuedEnum
- Returns:
- the integer value of the enum constant.
-
-
