Class SoBinaryCorrelationProcessing2d
- java.lang.Object
-
- com.openinventor.inventor.Inventor
-
- com.openinventor.inventor.misc.SoBase
-
- com.openinventor.inventor.fields.SoFieldContainer
-
- com.openinventor.inventor.engines.SoEngine
-
- com.openinventor.imageviz.engines.SoImageVizEngine
-
- com.openinventor.imageviz.engines.geometryandmatching.patternrecognition.SoBinaryCorrelationProcessing2d
-
- All Implemented Interfaces:
SafeDisposable
public class SoBinaryCorrelationProcessing2d extends SoImageVizEngine
SoBinaryCorrelationProcessing2d
engine.SoBinaryCorrelationProcessing2d

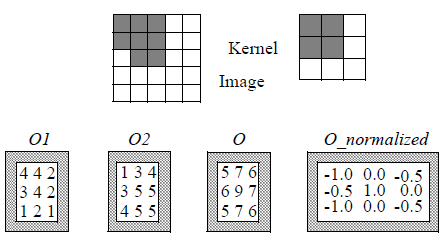

performs the logical correlation between a binary image and a binary kernel.Notations:
The binary correlation between image I and kernel K is defined as:
At the end of the processus, the correlation image is normalized between -1 and 1. When a part of the kernel lies beyond the edge of the image, the correlation is not computed on the border. In which case, the values are set to -3e38.
Note: The
SoBinaryCorrelationProcessing2d
filter does not accept a mask AOI attached to the kernel image.File format/default:
BinaryCorrelationProcessing2d {
inBinaryImage NULL inBinaryKernel NULL offsetMode OFFSET_1
Library references: bincorrel
-
-
Nested Class Summary
Nested Classes Modifier and Type Class Description static class
SoBinaryCorrelationProcessing2d.OffsetModes
See Correlation.static class
SoBinaryCorrelationProcessing2d.SbCorrelationDetail
Results details of image correlation.-
Nested classes/interfaces inherited from class com.openinventor.imageviz.engines.SoImageVizEngine
SoImageVizEngine.ComputeModes, SoImageVizEngine.EventArg, SoImageVizEngine.Neighborhood3ds
-
Nested classes/interfaces inherited from class com.openinventor.inventor.Inventor
Inventor.ConstructorCommand
-
-
Field Summary
Fields Modifier and Type Field Description SoSFImageDataAdapter
inBinaryImage
The input binary image.SoSFImageDataAdapter
inBinaryKernel
The correlation kernel.SoSFEnum<SoBinaryCorrelationProcessing2d.OffsetModes>
offsetMode
Select the calculation offset (number of pixels).SoImageVizEngineOutput<SoSFImageDataAdapter,SoImageDataAdapter>
outMatchingImage
The output correlation image.SoImageVizEngineAnalysisOutput<SoBinaryCorrelationProcessing2d.SbCorrelationDetail>
outResult
The correlation matching results.-
Fields inherited from class com.openinventor.imageviz.engines.SoImageVizEngine
onBegin, onEnd, onProgress
-
Fields inherited from class com.openinventor.inventor.Inventor
VERBOSE_LEVEL, ZeroHandle
-
-
Constructor Summary
Constructors Constructor Description SoBinaryCorrelationProcessing2d()
Constructor.
-
Method Summary
-
Methods inherited from class com.openinventor.imageviz.engines.SoImageVizEngine
abortEvaluate, isEvaluating, startEvaluate, waitEvaluate
-
Methods inherited from class com.openinventor.inventor.engines.SoEngine
copy, getByName, getOutput, getOutputName
-
Methods inherited from class com.openinventor.inventor.fields.SoFieldContainer
copyFieldValues, copyFieldValues, enableNotify, fieldsAreEqual, get, getAllFields, getEventIn, getEventOut, getField, getFieldName, hasDefaultValues, isNotifyEnabled, set, setToDefaults
-
Methods inherited from class com.openinventor.inventor.misc.SoBase
dispose, getName, isDisposable, isSynchronizable, setName, setSynchronizable, touch
-
Methods inherited from class com.openinventor.inventor.Inventor
getNativeResourceHandle
-
-
-
-
Field Detail
-
inBinaryImage
public final SoSFImageDataAdapter inBinaryImage
The input binary image. Default value is NULL. Supported types include: binary color image.
-
inBinaryKernel
public final SoSFImageDataAdapter inBinaryKernel
The correlation kernel. Default value is NULL. Supported types include: binary color image.
-
offsetMode
public final SoSFEnum<SoBinaryCorrelationProcessing2d.OffsetModes> offsetMode
Select the calculation offset (number of pixels). . Default is OFFSET_1
-
outMatchingImage
public final SoImageVizEngineOutput<SoSFImageDataAdapter,SoImageDataAdapter> outMatchingImage
The output correlation image. Default value is NULL. Supported types include: grayscale color image.
-
outResult
public final SoImageVizEngineAnalysisOutput<SoBinaryCorrelationProcessing2d.SbCorrelationDetail> outResult
The correlation matching results. Default value is NULL.
-
-
