SoInfluenceZonesProcessing

java.lang.Object
- com.openinventor.inventor.Inventor
- - com.openinventor.inventor.misc.SoBase
  - - com.openinventor.inventor.fields.SoFieldContainer
    - - com.openinventor.inventor.engines.SoEngine
      - com.openinventor.imageviz.engines.SoImageVizEngine

        com.openinventor.imageviz.engines.mathematicalmorphology.hitormissandskeleton.SoInfluenceZonesProcessing

All Implemented Interfaces:

SafeDisposable
```
public class SoInfluenceZonesProcessing
extends SoImageVizEngine
```
SoInfluenceZonesProcessing engine. The SoInfluenceZonesProcessing engine computes the skeleton by Influence Zone (SKIZ).
For an introduction, see section :
- Morphology
- Skeletonization
Skeletonization is used to produce a simplified representation of the objects in an image, while preserving their geometrical structure. The representation may then be used to calculate length, direction, etc. or to detect special topological structures such as end or triple points (number of crossings). Skeletonization is a transformation based on the thinning of connected components until a line is achieved.

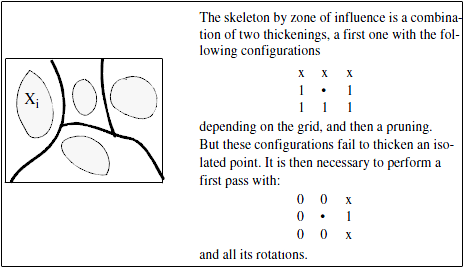

This engine produces a pruned skeleton of the background. The influence zone of a particle X is the set of points closer to X than to any other particle Y. The skeleton by influence zones is the boundary splitting the different influence zones, and it separates the image into zones surrounding each object.
This engine searches the skeleton of a binary or labelled image by influence zones. If the input is a binary image, it is first labelled, then the influence zones are determined by successive conditional dilations. The process stops as soon as all the zones are hitting each other.
File format/default:
InfluenceZonesProcessing {
}

Library references: skiz

Nested Class Summary
- Nested classes/interfaces inherited from class com.openinventor.imageviz.engines.SoImageVizEngine
  SoImageVizEngine.ComputeModes, SoImageVizEngine.EventArg, SoImageVizEngine.Neighborhood3ds
- Nested classes/interfaces inherited from class com.openinventor.inventor.Inventor
  Inventor.ConstructorCommand

Field Summary

Fields
Modifier and Type	Field	Description
`SoSFEnum<SoImageVizEngine.ComputeModes>`	`computeMode`	Select the compute Mode (2D or 3D or AUTO) .
`SoSFImageDataAdapter`	`inObjectImage`	The input binary or label image.
`SoSFEnum<SoImageVizEngine.Neighborhood3ds>`	`neighborhood3d`	In 3D configuration (see `computeMode`), the neighborhood connectivity defines the connectivity considered for processing adjacent voxels.
`SoImageVizEngineOutput<SoSFImageDataAdapter,SoImageDataAdapter>`	`outBinaryImage`	The output binary image.

Fields inherited from class com.openinventor.imageviz.engines.SoImageVizEngine
onBegin, onEnd, onProgress

Fields inherited from class com.openinventor.inventor.Inventor
VERBOSE_LEVEL, ZeroHandle

Constructor Summary

Constructors
Constructor Description

SoInfluenceZonesProcessing()
Constructor.

Method Summary
- Methods inherited from class com.openinventor.imageviz.engines.SoImageVizEngine
  abortEvaluate, isEvaluating, startEvaluate, waitEvaluate
- Methods inherited from class com.openinventor.inventor.engines.SoEngine
  copy, getByName, getOutput, getOutputName
- Methods inherited from class com.openinventor.inventor.fields.SoFieldContainer
  copyFieldValues, copyFieldValues, enableNotify, fieldsAreEqual, get, getAllFields, getEventIn, getEventOut, getField, getFieldName, hasDefaultValues, isNotifyEnabled, set, setToDefaults
- Methods inherited from class com.openinventor.inventor.misc.SoBase
  dispose, getName, isDisposable, isSynchronizable, setName, setSynchronizable, touch
- Methods inherited from class com.openinventor.inventor.Inventor
  getNativeResourceHandle
- Methods inherited from class java.lang.Object
  equals, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

- Field Detail
  - computeMode
```
public final SoSFEnum<SoImageVizEngine.ComputeModes> computeMode
```
    Select the compute Mode (2D or 3D or AUTO) . Default is MODE_AUTO
  - neighborhood3d
```
public final SoSFEnum<SoImageVizEngine.Neighborhood3ds> neighborhood3d
```
    In 3D configuration (see computeMode), the neighborhood connectivity defines the connectivity considered for processing adjacent voxels. . Default is CONNECTIVITY_26.
  - inObjectImage
```
public final SoSFImageDataAdapter inObjectImage
```
    The input binary or label image. Default value is NULL. Supported types include: binary label color image.
  - outBinaryImage
```
public final SoImageVizEngineOutput<SoSFImageDataAdapter,SoImageDataAdapter> outBinaryImage
```
    The output binary image. Default value is NULL. Supported types include: binary image.
- Constructor Detail
  - SoInfluenceZonesProcessing
```
public SoInfluenceZonesProcessing()
```
    Constructor.
