SoBitShiftProcessing

java.lang.Object
- com.openinventor.inventor.Inventor
- - com.openinventor.inventor.misc.SoBase
  - - com.openinventor.inventor.fields.SoFieldContainer
    - - com.openinventor.inventor.engines.SoEngine
      - com.openinventor.imageviz.engines.SoImageVizEngine

        com.openinventor.imageviz.engines.arithmeticandlogic.logicaloperations.SoBitShiftProcessing

All Implemented Interfaces:

SafeDisposable
```
@Deprecated(since="2023.2")
public class SoBitShiftProcessing
extends SoImageVizEngine
```
Deprecated.
As of Open Inventor 2023.2. ImageViz API is replaced by the new ImageDev toolkit.
SoBitShiftProcessing engine. The SoBitShiftProcessing engine shifts an image by a given number of bits.

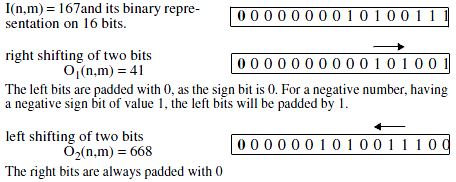

The SoBitShiftProcessing module shifts an image by a given number of bits. Each pixel/voxel of an image is shifted as shown in the example of the Figure below.
To summarize:
- i bits right shifting
- i bits left shifting
See Also:

SoLogicalValueProcessing, SoLogicalImageProcessing File format/default: BitShiftProcessing { inImage NULL bitNumber 1 shiftDirection LEFT } Library references: shift

Nested Class Summary

Nested Classes
Modifier and Type Class Description

static class SoBitShiftProcessing.ShiftDirections
Deprecated.
- Nested classes/interfaces inherited from class com.openinventor.imageviz.engines.SoImageVizEngine
  SoImageVizEngine.ComputeModes, SoImageVizEngine.EventArg, SoImageVizEngine.Neighborhood3ds
- Nested classes/interfaces inherited from class com.openinventor.inventor.Inventor
  Inventor.ConstructorCommand

Field Summary

Fields
Modifier and Type	Field	Description
`SoSFInt32`	`bitNumber`	Deprecated. The number of bits to shift.
`SoSFImageDataAdapter`	`inImage`	Deprecated. The input image.
`SoImageVizEngineOutput<SoSFImageDataAdapter,SoImageDataAdapter>`	`outImage`	Deprecated. The output image.
`SoSFEnum<SoBitShiftProcessing.ShiftDirections>`	`shiftDirection`	Deprecated. Select the shifting direction.

Fields inherited from class com.openinventor.imageviz.engines.SoImageVizEngine
onBegin, onEnd, onProgress

Fields inherited from class com.openinventor.inventor.Inventor
VERBOSE_LEVEL, ZeroHandle

Constructor Summary

Constructors
Constructor Description

SoBitShiftProcessing()
Deprecated.

Constructor.

Method Summary
- Methods inherited from class com.openinventor.imageviz.engines.SoImageVizEngine
  abortEvaluate, isEvaluating, startEvaluate, waitEvaluate
- Methods inherited from class com.openinventor.inventor.engines.SoEngine
  copy, getByName, getOutput, getOutputName
- Methods inherited from class com.openinventor.inventor.fields.SoFieldContainer
  copyFieldValues, copyFieldValues, enableNotify, fieldsAreEqual, get, getAllFields, getEventIn, getEventOut, getField, getFieldName, hasDefaultValues, isNotifyEnabled, set, setToDefaults
- Methods inherited from class com.openinventor.inventor.misc.SoBase
  dispose, getName, isDisposable, isSynchronizable, setName, setSynchronizable, touch
- Methods inherited from class com.openinventor.inventor.Inventor
  getNativeResourceHandle
- Methods inherited from class java.lang.Object
  equals, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

- Field Detail
  - inImage
```
public final SoSFImageDataAdapter inImage
```
    Deprecated.

    The input image. Default value is NULL. Supported types include: grayscale binary label color image.
  - bitNumber
```
public final SoSFInt32 bitNumber
```
    Deprecated.

    The number of bits to shift. Default value is 1.
  - shiftDirection
```
public final SoSFEnum<SoBitShiftProcessing.ShiftDirections> shiftDirection
```
    Deprecated.

    Select the shifting direction. . Default is LEFT
  - outImage
```
public final SoImageVizEngineOutput<SoSFImageDataAdapter,SoImageDataAdapter> outImage
```
    Deprecated.

    The output image. Default value is NULL. Supported types include: grayscale binary label color image.
- Constructor Detail
  - SoBitShiftProcessing
```
public SoBitShiftProcessing()
```
    Deprecated.

    Constructor.
