SoCentroidPathTortuosityQuantification3d

java.lang.Object
- com.openinventor.inventor.Inventor
- - com.openinventor.inventor.misc.SoBase
  - - com.openinventor.inventor.fields.SoFieldContainer
    - - com.openinventor.inventor.engines.SoEngine
      - com.openinventor.imageviz.engines.SoImageVizEngine

        com.openinventor.imageviz.engines.imageanalysis.globalmeasures.SoCentroidPathTortuosityQuantification3d

All Implemented Interfaces:

SafeDisposable
```
@Deprecated(since="2023.2")
public class SoCentroidPathTortuosityQuantification3d
extends SoImageVizEngine
```
Deprecated.
As of Open Inventor 2023.2. ImageViz API is replaced by the new ImageDev toolkit.

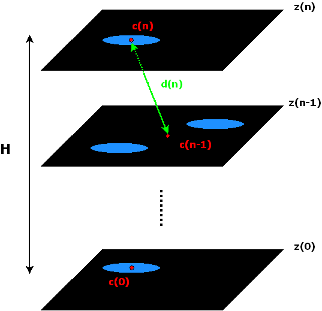

SoCentroidPathTortuosityQuantification3d engine the tortuosity of a path formed by centroids of each plan of a binary 3D image along z-axis. Tortuosity is the ratio of the length of a curve to the distance between the ends of it along z-axis. In our case the distance between the ends of curve is given by the number of planes along z-axis.
This module first computes the centroid of each plane of the image. Then it computes the path length through the centroids and then divides it by the number of planes along z-axis.

File format/default:
CentroidPathTortuosityQuantification3d {
}

Library references: tortuosity

Nested Class Summary

Nested Classes
Modifier and Type Class Description

static class SoCentroidPathTortuosityQuantification3d.SbCentroidTortuosity3dDetail
Deprecated.
As of Open Inventor 2023.2.
- Nested classes/interfaces inherited from class com.openinventor.imageviz.engines.SoImageVizEngine
  SoImageVizEngine.ComputeModes, SoImageVizEngine.EventArg, SoImageVizEngine.Neighborhood3ds
- Nested classes/interfaces inherited from class com.openinventor.inventor.Inventor
  Inventor.ConstructorCommand

Field Summary

Fields
Modifier and Type	Field	Description
`SoSFImageDataAdapter`	`inBinaryImage`	Deprecated. The input 3D binary image.
`SoImageVizEngineAnalysisOutput<SoCentroidPathTortuosityQuantification3d.SbCentroidTortuosity3dDetail>`	`outResult`	Deprecated. The output measure result.

Fields inherited from class com.openinventor.imageviz.engines.SoImageVizEngine
onBegin, onEnd, onProgress

Fields inherited from class com.openinventor.inventor.Inventor
VERBOSE_LEVEL, ZeroHandle

Constructor Summary

Constructors
Constructor Description

SoCentroidPathTortuosityQuantification3d()
Deprecated.

Constructor.

Method Summary
- Methods inherited from class com.openinventor.imageviz.engines.SoImageVizEngine
  abortEvaluate, isEvaluating, startEvaluate, waitEvaluate
- Methods inherited from class com.openinventor.inventor.engines.SoEngine
  copy, getByName, getOutput, getOutputName
- Methods inherited from class com.openinventor.inventor.fields.SoFieldContainer
  copyFieldValues, copyFieldValues, enableNotify, fieldsAreEqual, get, getAllFields, getEventIn, getEventOut, getField, getFieldName, hasDefaultValues, isNotifyEnabled, set, setToDefaults
- Methods inherited from class com.openinventor.inventor.misc.SoBase
  dispose, getName, isDisposable, isSynchronizable, setName, setSynchronizable, touch
- Methods inherited from class com.openinventor.inventor.Inventor
  getNativeResourceHandle
- Methods inherited from class java.lang.Object
  equals, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

- Field Detail
  - inBinaryImage
```
public final SoSFImageDataAdapter inBinaryImage
```
    Deprecated.

    The input 3D binary image. Default value is NULL. Supported types include: binary image.
  - outResult
```
public final SoImageVizEngineAnalysisOutput<SoCentroidPathTortuosityQuantification3d.SbCentroidTortuosity3dDetail> outResult
```
    Deprecated.

    The output measure result. Default value is NULL.
- Constructor Detail
  - SoCentroidPathTortuosityQuantification3d
```
public SoCentroidPathTortuosityQuantification3d()
```
    Deprecated.

    Constructor.
