SoMeasureImageProcessing

java.lang.Object
- com.openinventor.inventor.Inventor
- - com.openinventor.inventor.misc.SoBase
  - - com.openinventor.inventor.fields.SoFieldContainer
    - - com.openinventor.inventor.engines.SoEngine
      - com.openinventor.imageviz.engines.SoImageVizEngine

        com.openinventor.imageviz.engines.imageanalysis.individualmeasures.SoMeasureImageProcessing

All Implemented Interfaces:

SafeDisposable
```
@Deprecated(since="2023.2")
public class SoMeasureImageProcessing
extends SoImageVizEngine
```
Deprecated.
As of Open Inventor 2023.2. ImageViz API is replaced by the new ImageDev toolkit.
SoMeasureImageProcessing engine allows to replace all labels of the input image by the result of an individual measure. For an introduction, see:
- section Image Analysis
- Measure Node

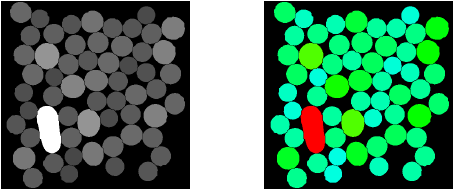

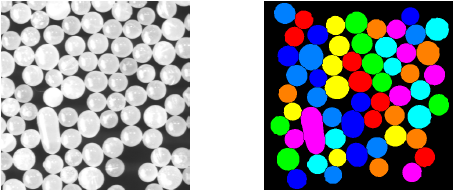

The SoMeasureImageProcessing engine allows to replace all labels of the input image by the result of an individual measure. SoMeasureImageProcessing engine supports same individual measurements than any analysis engine (SoLabelAnalysisQuantification). Arithmetic type of the ouput image depends on the measurement used as parameter. It can be LONG or FLOAT. For example, this engine can affect the surface value of labels at all voxels of the labels.
See Also:

SoLabelAnalysisQuantification File format/default: MeasureImageProcessing { computeMode MODE_AUTO inLabelImage NULL inIntensityImage NULL measure NULL } Library references: measure_image

Nested Class Summary
- Nested classes/interfaces inherited from class com.openinventor.imageviz.engines.SoImageVizEngine
  SoImageVizEngine.ComputeModes, SoImageVizEngine.EventArg, SoImageVizEngine.Neighborhood3ds
- Nested classes/interfaces inherited from class com.openinventor.inventor.Inventor
  Inventor.ConstructorCommand

Field Summary

Fields
Modifier and Type	Field	Description
`SoSFEnum<SoImageVizEngine.ComputeModes>`	`computeMode`	Deprecated. Select the compute Mode (2D or 3D or AUTO) .
`SoSFImageDataAdapter`	`inIntensityImage`	Deprecated. The input image Default value is NULL.
`SoSFImageDataAdapter`	`inLabelImage`	Deprecated. The input label image Default value is NULL.
`SoSFDataMeasure`	`measure`	Deprecated. Select a measure Default value is NULL.
`SoSFDataMeasureAttributes`	`measureAttributes`	Deprecated. The measure attributes to customize measurement.
`SoImageVizEngineOutput<SoSFImageDataAdapter,SoImageDataAdapter>`	`outMeasureImage`	Deprecated. The output image Default value is NULL.

Fields inherited from class com.openinventor.imageviz.engines.SoImageVizEngine
onBegin, onEnd, onProgress

Fields inherited from class com.openinventor.inventor.Inventor
VERBOSE_LEVEL, ZeroHandle

Constructor Summary

Constructors
Constructor Description

SoMeasureImageProcessing()
Deprecated.

Constructor.

Method Summary
- Methods inherited from class com.openinventor.imageviz.engines.SoImageVizEngine
  abortEvaluate, isEvaluating, startEvaluate, waitEvaluate
- Methods inherited from class com.openinventor.inventor.engines.SoEngine
  copy, getByName, getOutput, getOutputName
- Methods inherited from class com.openinventor.inventor.fields.SoFieldContainer
  copyFieldValues, copyFieldValues, enableNotify, fieldsAreEqual, get, getAllFields, getEventIn, getEventOut, getField, getFieldName, hasDefaultValues, isNotifyEnabled, set, setToDefaults
- Methods inherited from class com.openinventor.inventor.misc.SoBase
  dispose, getName, isDisposable, isSynchronizable, setName, setSynchronizable, touch
- Methods inherited from class com.openinventor.inventor.Inventor
  getNativeResourceHandle
- Methods inherited from class java.lang.Object
  equals, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

- Field Detail
  - computeMode
```
public final SoSFEnum<SoImageVizEngine.ComputeModes> computeMode
```
    Deprecated.

    Select the compute Mode (2D or 3D or AUTO) . Default is MODE_AUTO
  - inLabelImage
```
public final SoSFImageDataAdapter inLabelImage
```
    Deprecated.

    The input label image Default value is NULL. Supported types include: label color image.
  - inIntensityImage
```
public final SoSFImageDataAdapter inIntensityImage
```
    Deprecated.

    The input image Default value is NULL. Supported types include: grayscale binary label color image.
  - measure
```
public final SoSFDataMeasure measure
```
    Deprecated.

    Select a measure Default value is NULL.
  - measureAttributes
```
public final SoSFDataMeasureAttributes measureAttributes
```
    Deprecated.

    The measure attributes to customize measurement.
  - outMeasureImage
```
public final SoImageVizEngineOutput<SoSFImageDataAdapter,SoImageDataAdapter> outMeasureImage
```
    Deprecated.

    The output image Default value is NULL. Supported types include: grayscale binary label color image.
- Constructor Detail
  - SoMeasureImageProcessing
```
public SoMeasureImageProcessing()
```
    Deprecated.

    Constructor.
