SoRandomSphereGeneration3d

java.lang.Object
- com.openinventor.inventor.Inventor
- - com.openinventor.inventor.misc.SoBase
  - - com.openinventor.inventor.fields.SoFieldContainer
    - - com.openinventor.inventor.engines.SoEngine
      - com.openinventor.imageviz.engines.SoImageVizEngine

        com.openinventor.imageviz.engines.imagemanipulation.syntheticimages.SoRandomSphereGeneration3d

All Implemented Interfaces:

SafeDisposable
```
@Deprecated(since="2023.2")
public class SoRandomSphereGeneration3d
extends SoImageVizEngine
```
Deprecated.
As of Open Inventor 2023.2. ImageViz API is replaced by the new ImageDev toolkit.

SoRandomSphereGeneration3d engine allow to create synthetic spheres in a binary image. The SoRandomSphereGeneration3d engine creates a binary image containing a random distribution of spheres. User can specify size, distance, type of distribution and the sphere number.

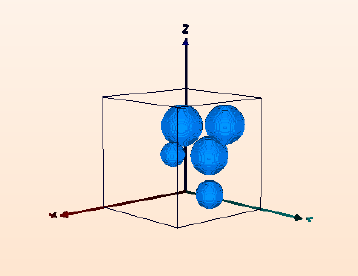

The image below is an example of the result with the default parameters:

See Also:

SoRandomSphereGeneration3d File format/default: RandomSphereGeneration3d { imageSize 100 100 100 sphereNumber 5 distribution UNIFORM radiusRange 10 20 distance 40 } Library references: buildsphere

Nested Class Summary

Nested Classes
Modifier and Type Class Description

static class SoRandomSphereGeneration3d.Distributions
Deprecated.
- Nested classes/interfaces inherited from class com.openinventor.imageviz.engines.SoImageVizEngine
  SoImageVizEngine.ComputeModes, SoImageVizEngine.EventArg, SoImageVizEngine.Neighborhood3ds
- Nested classes/interfaces inherited from class com.openinventor.inventor.Inventor
  Inventor.ConstructorCommand

Field Summary

Fields
Modifier and Type	Field	Description
`SoSFInt32`	`distance`	Deprecated. The minimum length between two centers.
`SoSFEnum<SoRandomSphereGeneration3d.Distributions>`	`distribution`	Deprecated. The distribution type for length of radius.
`SoSFVec3i32`	`imageSize`	Deprecated. The size of the new image.
`SoImageVizEngineOutput<SoSFImageDataAdapter,SoImageDataAdapter>`	`outBinaryImage`	Deprecated. The output 3D binary image.
`SoSFVec2i32`	`radiusRange`	Deprecated. The min and max size of radius (for Uniform distribution) or mean and standard deviation (for gaussian distribution).
`SoSFInt32`	`sphereNumber`	Deprecated. The number of spheres.

Fields inherited from class com.openinventor.imageviz.engines.SoImageVizEngine
onBegin, onEnd, onProgress

Fields inherited from class com.openinventor.inventor.Inventor
VERBOSE_LEVEL, ZeroHandle

Constructor Summary

Constructors
Constructor Description

SoRandomSphereGeneration3d()
Deprecated.

Constructor.

Method Summary
- Methods inherited from class com.openinventor.imageviz.engines.SoImageVizEngine
  abortEvaluate, isEvaluating, startEvaluate, waitEvaluate
- Methods inherited from class com.openinventor.inventor.engines.SoEngine
  copy, getByName, getOutput, getOutputName
- Methods inherited from class com.openinventor.inventor.fields.SoFieldContainer
  copyFieldValues, copyFieldValues, enableNotify, fieldsAreEqual, get, getAllFields, getEventIn, getEventOut, getField, getFieldName, hasDefaultValues, isNotifyEnabled, set, setToDefaults
- Methods inherited from class com.openinventor.inventor.misc.SoBase
  dispose, getName, isDisposable, isSynchronizable, setName, setSynchronizable, touch
- Methods inherited from class com.openinventor.inventor.Inventor
  getNativeResourceHandle
- Methods inherited from class java.lang.Object
  equals, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

- Field Detail
  - imageSize
```
public final SoSFVec3i32 imageSize
```
    Deprecated.

    The size of the new image. Default value is SbVec3i32(100,100,100).
  - sphereNumber
```
public final SoSFInt32 sphereNumber
```
    Deprecated.

    The number of spheres. Default value is 5.
  - distribution
```
public final SoSFEnum<SoRandomSphereGeneration3d.Distributions> distribution
```
    Deprecated.

    The distribution type for length of radius. . Default is UNIFORM
  - radiusRange
```
public final SoSFVec2i32 radiusRange
```
    Deprecated.

    The min and max size of radius (for Uniform distribution) or mean and standard deviation (for gaussian distribution). Default value is SbVec2i32(10,20).
  - distance
```
public final SoSFInt32 distance
```
    Deprecated.

    The minimum length between two centers. Default value is 40.
  - outBinaryImage
```
public final SoImageVizEngineOutput<SoSFImageDataAdapter,SoImageDataAdapter> outBinaryImage
```
    Deprecated.

    The output 3D binary image. Default value is NULL. Supported types include: grayscale binary label color image.
- Constructor Detail
  - SoRandomSphereGeneration3d
```
public SoRandomSphereGeneration3d()
```
    Deprecated.

    Constructor.
