SoHExtremaProcessing

java.lang.Object
- com.openinventor.inventor.Inventor
- - com.openinventor.inventor.misc.SoBase
  - - com.openinventor.inventor.fields.SoFieldContainer
    - - com.openinventor.inventor.engines.SoEngine
      - com.openinventor.imageviz.engines.SoImageVizEngine

        com.openinventor.imageviz.engines.mathematicalmorphology.geodesictransformations.SoHExtremaProcessing

All Implemented Interfaces:

SafeDisposable
```
@Deprecated(since="2023.2")
public class SoHExtremaProcessing
extends SoImageVizEngine
```
Deprecated.
As of Open Inventor 2023.2. ImageViz API is replaced by the new ImageDev toolkit.

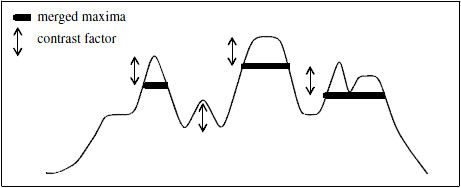

SoHExtremaProcessing engine. The SoHExtremaProcessing engine merges the regional minima or maxima.
This engine merges regional minima or maxima based on a contrast coefficient criterion h. It is useful for filtering noisy minima or maxima sets. It can also be used as particle markers in various algorithms, e.g. watershed detection.
Case Minima
The input is added to the contrast coefficient h, then a SoExtremaImpositionProcessing (case Erosion) is performed on the result of the addition.
The regional minima of the reconstructed image are called the H-Minima.
Case Maxima
The input is subtracted from the contrast coefficient h, then a SoExtremaImpositionProcessing (case Dilation) is performed on the result of the subtraction.
The regional maxima of the reconstructed image are called the H-Maxima.

See Also:

SoRegionalExtremaProcessing, SoGrayscaleResconstructionProcessing File format/default: HExtremaProcessing { computeMode MODE_AUTO neighborhood3d CONNECTIVITY_26 regionalOperator MAXIMA inImage NULL contrast 4 } Library references: merge_maxima merge_minima

Nested Class Summary

Nested Classes
Modifier and Type Class Description

static class SoHExtremaProcessing.RegionalOperators
Deprecated.
- Nested classes/interfaces inherited from class com.openinventor.imageviz.engines.SoImageVizEngine
  SoImageVizEngine.ComputeModes, SoImageVizEngine.EventArg, SoImageVizEngine.Neighborhood3ds
- Nested classes/interfaces inherited from class com.openinventor.inventor.Inventor
  Inventor.ConstructorCommand

Field Summary

Fields
Modifier and Type	Field	Description
`SoSFEnum<SoImageVizEngine.ComputeModes>`	`computeMode`	Deprecated. Select the compute Mode (2D or 3D or AUTO) .
`SoSFInt32`	`contrast`	Deprecated. The contrast.
`SoSFImageDataAdapter`	`inImage`	Deprecated. The input image.
`SoSFEnum<SoImageVizEngine.Neighborhood3ds>`	`neighborhood3d`	Deprecated. In 3D configuration (see `computeMode`), the neighborhood connectivity defines the connectivity considered for processing adjacent voxels.
`SoImageVizEngineOutput<SoSFImageDataAdapter,SoImageDataAdapter>`	`outBinaryImage`	Deprecated. The output binary image.
`SoSFEnum<SoHExtremaProcessing.RegionalOperators>`	`regionalOperator`	Deprecated. Select the operator.

Fields inherited from class com.openinventor.imageviz.engines.SoImageVizEngine
onBegin, onEnd, onProgress

Fields inherited from class com.openinventor.inventor.Inventor
VERBOSE_LEVEL, ZeroHandle

Constructor Summary

Constructors
Constructor Description

SoHExtremaProcessing()
Deprecated.

Constructor.

Method Summary
- Methods inherited from class com.openinventor.imageviz.engines.SoImageVizEngine
  abortEvaluate, isEvaluating, startEvaluate, waitEvaluate
- Methods inherited from class com.openinventor.inventor.engines.SoEngine
  copy, getByName, getOutput, getOutputName
- Methods inherited from class com.openinventor.inventor.fields.SoFieldContainer
  copyFieldValues, copyFieldValues, enableNotify, fieldsAreEqual, get, getAllFields, getEventIn, getEventOut, getField, getFieldName, hasDefaultValues, isNotifyEnabled, set, setToDefaults
- Methods inherited from class com.openinventor.inventor.misc.SoBase
  dispose, getName, isDisposable, isSynchronizable, setName, setSynchronizable, touch
- Methods inherited from class com.openinventor.inventor.Inventor
  getNativeResourceHandle
- Methods inherited from class java.lang.Object
  equals, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

- Field Detail
  - computeMode
```
public final SoSFEnum<SoImageVizEngine.ComputeModes> computeMode
```
    Deprecated.

    Select the compute Mode (2D or 3D or AUTO) . Default is MODE_AUTO
  - neighborhood3d
```
public final SoSFEnum<SoImageVizEngine.Neighborhood3ds> neighborhood3d
```
    Deprecated.

    In 3D configuration (see computeMode), the neighborhood connectivity defines the connectivity considered for processing adjacent voxels. . Default is CONNECTIVITY_26.
  - regionalOperator
```
public final SoSFEnum<SoHExtremaProcessing.RegionalOperators> regionalOperator
```
    Deprecated.

    Select the operator. . Default is MAXIMA
  - inImage
```
public final SoSFImageDataAdapter inImage
```
    Deprecated.

    The input image. Default value is NULL. Supported types include: grayscale image.
  - contrast
```
public final SoSFInt32 contrast
```
    Deprecated.

    The contrast. Default value is 4.
  - outBinaryImage
```
public final SoImageVizEngineOutput<SoSFImageDataAdapter,SoImageDataAdapter> outBinaryImage
```
    Deprecated.

    The output binary image. Default value is NULL. Supported types include: binary image.
- Constructor Detail
  - SoHExtremaProcessing
```
public SoHExtremaProcessing()
```
    Deprecated.

    Constructor.
