SoUltimateErosionProcessing

java.lang.Object
- com.openinventor.inventor.Inventor
- - com.openinventor.inventor.misc.SoBase
  - - com.openinventor.inventor.fields.SoFieldContainer
    - - com.openinventor.inventor.engines.SoEngine
      - com.openinventor.imageviz.engines.SoImageVizEngine

        com.openinventor.imageviz.engines.mathematicalmorphology.geodesictransformations.SoUltimateErosionProcessing

All Implemented Interfaces:

SafeDisposable
```
@Deprecated(since="2023.2")
public class SoUltimateErosionProcessing
extends SoImageVizEngine
```
Deprecated.
As of Open Inventor 2023.2. ImageViz API is replaced by the new ImageDev toolkit.

SoUltimateErosionProcessing engine. The SoUltimateErosionProcessing engine computes the SoUltimateErosionProcessing eroded set.
For an introduction, see section Morphology.

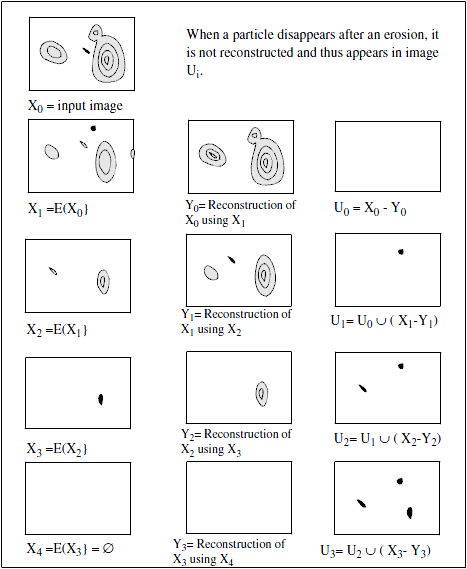

This engine computes the SoUltimateErosionProcessing eroded set of the input image. Ultimate erosion consists of successive erosion of the image until all objects disappear ( images below). Then each erosion step is reconstructed into the previous erosion step ( image below). The difference between the eroded image and the reconstructed image is the centroid of objects which disappeared at the erosion step number .
This engine enables counting the number of convex particles, even if some of them are touching each other, as long as the pseudo-centre of each particle is outside of other particles.

See Also:

SoBorderKillProcessing, SoReconstructionFromMarkersProcessing File format/default: UltimateErosionProcessing { computeMode MODE_AUTO neighborhood3d CONNECTIVITY_26 inBinaryImage NULL } Library references: ultimate

Nested Class Summary
- Nested classes/interfaces inherited from class com.openinventor.imageviz.engines.SoImageVizEngine
  SoImageVizEngine.ComputeModes, SoImageVizEngine.EventArg, SoImageVizEngine.Neighborhood3ds
- Nested classes/interfaces inherited from class com.openinventor.inventor.Inventor
  Inventor.ConstructorCommand

Field Summary

Fields
Modifier and Type	Field	Description
`SoSFEnum<SoImageVizEngine.ComputeModes>`	`computeMode`	Deprecated. Select the compute Mode (2D or 3D or AUTO) .
`SoSFImageDataAdapter`	`inBinaryImage`	Deprecated. The input binary image.
`SoSFEnum<SoImageVizEngine.Neighborhood3ds>`	`neighborhood3d`	Deprecated. In 3D configuration (see `computeMode`), the neighborhood connectivity defines the connectivity considered for processing adjacent voxels.
`SoImageVizEngineOutput<SoSFImageDataAdapter,SoImageDataAdapter>`	`outBinaryImage`	Deprecated. The output binary image.

Fields inherited from class com.openinventor.imageviz.engines.SoImageVizEngine
onBegin, onEnd, onProgress

Fields inherited from class com.openinventor.inventor.Inventor
VERBOSE_LEVEL, ZeroHandle

Constructor Summary

Constructors
Constructor Description

SoUltimateErosionProcessing()
Deprecated.

Constructor.

Method Summary
- Methods inherited from class com.openinventor.imageviz.engines.SoImageVizEngine
  abortEvaluate, isEvaluating, startEvaluate, waitEvaluate
- Methods inherited from class com.openinventor.inventor.engines.SoEngine
  copy, getByName, getOutput, getOutputName
- Methods inherited from class com.openinventor.inventor.fields.SoFieldContainer
  copyFieldValues, copyFieldValues, enableNotify, fieldsAreEqual, get, getAllFields, getEventIn, getEventOut, getField, getFieldName, hasDefaultValues, isNotifyEnabled, set, setToDefaults
- Methods inherited from class com.openinventor.inventor.misc.SoBase
  dispose, getName, isDisposable, isSynchronizable, setName, setSynchronizable, touch
- Methods inherited from class com.openinventor.inventor.Inventor
  getNativeResourceHandle
- Methods inherited from class java.lang.Object
  equals, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

- Field Detail
  - computeMode
```
public final SoSFEnum<SoImageVizEngine.ComputeModes> computeMode
```
    Deprecated.

    Select the compute Mode (2D or 3D or AUTO) . Default is MODE_AUTO
  - neighborhood3d
```
public final SoSFEnum<SoImageVizEngine.Neighborhood3ds> neighborhood3d
```
    Deprecated.

    In 3D configuration (see computeMode), the neighborhood connectivity defines the connectivity considered for processing adjacent voxels. . Default is CONNECTIVITY_26.
  - inBinaryImage
```
public final SoSFImageDataAdapter inBinaryImage
```
    Deprecated.

    The input binary image. Default value is NULL. Supported types include: binary color image.
  - outBinaryImage
```
public final SoImageVizEngineOutput<SoSFImageDataAdapter,SoImageDataAdapter> outBinaryImage
```
    Deprecated.

    The output binary image. Default value is NULL. Supported types include: binary image.
- Constructor Detail
  - SoUltimateErosionProcessing
```
public SoUltimateErosionProcessing()
```
    Deprecated.

    Constructor.
