Package com.openinventor.volumeviz.nodes

Class SoVolumeRender

  • All Implemented Interfaces:
    SafeDisposable
    public class SoVolumeRender
extends SoVolumeShape
    Renders data volumes using direct volume rendering. This node renders volume data using "direct volume rendering". The volume process involves sampling, interpolation, classification and composition. The rendering algorithm is a GPU-based technique called raycasting. Raycasting has similarities to the well known algorithm called raytracing, but is specialized for volume data (renders voxels not triangles) and does not currently implement reflection or refraction. One or more "rays" are cast through the volume from each relevant pixel on the screen. Samples are taken at intervals along each ray. The sample interval is controlled by the numSlices and numSlicesControl fields. At each sample point a value is interpolated from the closest voxels. The interpolation technique is controlled by the interpolation field. Classification means that color and opacity are computed based on the current SoDataRange and SoTransferFunction (and possibly values from other volumes - see SoVolumeShader). Optional rendering effects may modify the base color and/or opacity. These effects are controlled by an SoVolumeRenderingQuality node and include lighting, shadows, edge coloring, boundary opacity and more. The sample is then composited with other samples along the ray. Composition is controlled by the renderMode field. By default colors are combined based on the opacity of the sample (alpha blending). The ray is terminated if it reaches full opacity or reaches the current depth in the depth buffer.

    The voxel's color to be combined during the composition step are retrieved in 2 different ways according the type of volume data:

    • For a volume containing scalar data values: each voxel's color is determined by applying the current SoDataRange and SoTransferFunction to the voxel's value.
    • For an RGBA volume, each voxel's color comes directly from the volume data and the SoDataRange and SoTransferFunction are ignored.

    The voxel's color is also combined with the current base color and transparency (see definition of base color here) set for example with an SoMaterial or an SoPhysicalMaterial node. This means that, for example, the current transparency can be used as a *global alpha* scale factor to decrease the opacity of all voxels.

    If the light SoLightModel.model is either PER_VERTEX_PHONG or PER_PIXEL_PHONG, the final voxel's color is also affected by the fields emissiveColor, specularColor and shininess of the current SoMaterial. If the light SoLightModel.model is PHYSICALLY_BASED the final voxel's color is also affected by the fields specular roughness metallic of the current SoPhysicalMaterial.

    The samplingAlignment field controls whether the samples are axis aligned (perpendicular to one axis of the volume), view aligned (perpendicular to the view direction) or boundary aligned (each ray starts at the first intersected voxel with alpha value > 0). Generally boundary aligned slices should be used (better image quality). Using SoVolumeGroup, SoVolumeIsoSurface or SoProjection nodes will automatically switch to view-aligned samples.

    The property nodes SoVolumeIsoSurface and SoVolumeDataDrawStyle add additional rendering styles and can be used, for example, to force SoVolumeRender to draw a GPU computed isosurface instead of volume rendering.

    Example rendering:

    # Multiple volumes:

    VolumeViz provides several mechanisms for combining or rendering multiple volumes, depending on the application's specific requirements. There are several cases:

    • CPU data combining The data values from multiple volumes can be combined on the CPU during data loading, using the SoDataCompositor node. For example computing the "difference" between two volumes on the fly. SoLDMDataTransform and SoVolumeTransform can be used to modify data for a single volume, for example scaling data values or computing a derived data set. SoLDMDataTransform is applied when data is loaded and SoVolumeTransform is applied before data is transferred to the GPU.
    • Multiple data sets These are volumes that are really multiple data sets on the same "grid", in other words volumes having exactly the same dimensions and extent. For example, seismic attribute volumes. These volumes can be combined on the GPU using a simple fragment shader function. For example, replacing the VVizComputeFragmentColor (GLSL) function allows "co-blending" the colors from multiple volumes. See SoVolumeShader for more details. Use an SoMultiDataSeparator node to group the volume data nodes that should be combined.
    • Multiple independent volumes These are volumes in the same scene that are completely independent (but might overlap in space) or have different dimensions or different extents. For example, medical datasets from different modalities.

      In order to ensure that the rendering of overlapping transparent volumes is properly interleaved, there are 2 options:

    # Custom shaders:

    The SoVolumeShader node allows a variety of custom shader functions to be defined for special computation or rendering effects on single volumes or multiple volumes. All of these features require programmable shader support on the GPU. Be sure to use an SoMultiDataSeparator (instead of SoSeparator) when combining multiple volumes.

    # Composition of multiple independent volumes:

    It is possible to compose datasets that have different dimensions, tile sizes and transformations. In those cases, the volume rendering will be applied on the union of the extents of all the SoVolumeData nodes on state.

    In addition, texture coordinates conversion functions are provided in the VolumeViz/vvizStructure.h* shader include in order to help fetch the correct data values in custom shaders.

    For instance,

     vec3 VVizTextureToTextureVec(in VVizDataSetId datasetSrc, in VVizDataSetId datasetDst, in vec3 texCoord);
    can be used to convert texture coordinates related to one dataset to texture coordinates related to another dataset.

    The conversion is based solely on the transformations applied to each dataset, which are defined by their model matrix and their extent. Please note that the model matrix of a dataset is defined by to the SoTransformation nodes that are placed **before** the SoDataSet node in the order of the traversal.

    See SoVolumeShader.FRAGMENT_COMPUTE_COLOR for an example of a shader implementing the VVizComputeFragmentColor() function in that case.

    # Lighting

    The SoVolumeRenderingQuality property node allows you to to enable GPU computed lighting based on the first SoLight node in the scene graph. (Note that this is typically the viewer's "headlight".) VolumeViz supports two lighting algorithms. They are both computed on the GPU and are independent (but normally only one should be enabled).

    • Gradient lighting Computes the effect of lighting for every sample along the ray, similar to the computation for polygonal geometry, but using a gradient vector computed from the voxel data values instead of a normal vector. Gradient lighting is enabled by the field SoVolumeRenderingQuality.lighting. Gradient lighting is the classic solution but can have problems in relatively homogeneous regions where the gradient magnitude is small and gradient direction somewhat random. Multiple fields affect this computation including interpolation, gradientThreshold, gradientQuality and surfaceScalarExponent.
    • Deferred lighting Computes the effect of lighting for every visible voxel, as a post-processing step, using a gradient vector computed from the (visible) voxel depth values. Deferred lighting is enabled by the field SoVolumeRenderingQuality.deferredLighting. Deferred lighting generally provides better performance because fewer lighting computations are needed. Deferred lighting generally provides better image quality for volumes that inherently contain surfaces (sharp gradients) like medical and industrial scans. Deferred lighting is most effective when the opacity values in the transfer function are approximately binary (mostly 0 and 1 values). See also the opacityThreshold field.

    # Shadows:

    Open Inventor shadow rendering works for volume rendering similar to any other geometry. When shadow rendering is enabled (see SoShadowGroup), non-transparent voxels can cast and receive shadows (see SoShadowStyle). Shadow rendering is independent of whether lighting is enabled for the volume.

    SoVolumeRender also supports "ambient occlusion" rendering (see the field SoVolumeRenderingQuality.ambientOcclusion). This rendering mode is visually a kind of self-shadowing and represents an approximation of the effect of ambient global lighting in the scene. Ambient occlusion can be combined with gradient or deferred lighting and with shadow casting.

    # Clipping:

    VolumeViz provides multiple tools for clipping volume rendering. Any or all of these tools may be combined for more complex clipping situations. Note that these tools clip all volume shapes including slices.

    • The SoROI (Region of Interest) node limits volume rendering to a subvolume. The SoROI node's EXCLUSION_BOX mode can also be used to exclude a sub-region, forming what is sometimes called a "chair cut". Note that the Region of Interest also limits *data loading *, so it is valuable when the total size of the volume exceeds the available system memory.
    • The SoVolumeClippingGroup node clips volume rendering to any closed shape defined by a group of standard Open Inventor geometry nodes. Both "inside" and "outside" clipping are supported. The SoScreenDrawer, SbExtrusionGenerator and SoCSGShape nodes are useful for creating clipping geometry for interactive volume "sculpting".
    • The SoUniformGridClipping and SoUniformGridProjectionClipping nodes clip volume rendering against one or more surfaces defined by a height field. This is particularly useful in seismic applications for clipping against (or between) horizon surfaces.
    • The SoVolumeMask node can be used to clip volume rendering against a boolean mask volume on a per-voxel basis. But the mask mechanism is much more powerful than that. Each region can have its own transfer function (color map) using SoTransferFunction nodes. Each region can also have its own draw style (volume rendering, isosurface or boundary) using SoVolumeDataDrawStyle nodes. Each region, including the original unmasked volume, is only visible if there exists a transfer function (SoTransferFunction) with the same id value.

    # Picking:

    SoRayPickAction handles picking of VolumeViz shapes similar to other geometry in the scene, but with additional features. Picking on an SoVolumeRender node can return the first non-transparent voxel "hit" or the entire set of intersected voxels along the pick ray, depending on the pickAll flag of the SoRayPickAction. Similar to other geometry, SoPickedPoint can return a "detail" class specific to SoVolumeRender. SoVolumeRenderDetail returns the IJK (voxel coordinate) position of the pick and the data value at that point.

    The SoVolumeRender node (by default) uses the GPU to compute the picked voxel during an SoRayPickAction. For this to work, the SoRayPickAction must have its scene manager initialised using the method SoAction.setSceneManager(). SoHandleEventAction does this automatically, so it is not necessary for the application to take any action when using (for example) an SoEventCallback node and calling the getPickedPoint() method. However if the application creates its own SoRayPickAction then it should set the scene manager. If no scene manager is specified, a warning message is issued and software picking is done. If necessary, using the GPU for volume picking may be disabled by setting the environment variable IVVR_GPU_PICKING to 0 (see SoPreferences).

    # Projection:

    The SoVolumeRender node supports projected volume rendering, for example rendering a volume defined on a grid of latitude / longitude coordinates. Projection is enabled by adding an SoProjection node before the SoVolumeRender node (see SoProjection for more information about supported coordinate systems, ellipsoids and map projections). The projection quality versus speed ratio can be controlled using the new projectedTileSubdivision field that defines how often each tile's geometry will be subdivided when projected. This is important because only the corner points of the tiles are projected, not the individual voxels. So subdividing the tiles provides a better approximation of the actual shape of the grid. Volume projection works with both regular (uniform voxel spacing) and rectilinear (non-uniform voxel spacing) grids. SoProjection automatically selects view-aligned sampling.

    Warning:

    • Volume projection is incompatible with some options enabled by the VolumeRenderingQuality node. Do not enable the preIntegrated, jittering or edgeDetect2D fields.
    • Volume projection requires all culling to be disabled. The following options in class SoLDMGlobalResourceParameters should be disabled: setScreenResolutionCulling (default is false), setViewpointRefinement (default is true) and setViewCulling (default is true).

    # Performance:

    Volume rendering performance is affected by many factors including the size of the volume and the rendering options selected. Image quality is also affected by many rendering options and, in general, higher quality implies lower performance. Some of the factors affecting volume rendering performance are:

    • Number of voxels: This mainly depends on the size of the volume, but can be reduced using an SoROI (region of interest) node.
    • Number of pixels: A larger number of pixels means a larger number of rays must be cast through the volume and therefore the shader execution time on the GPU will be longer. This effect is most noticeable when high quality rendering options are enabled. The number of pixels rendered can be temporarily reduced by setting the lowResMode field to DECREASE_SCREEN_RESOLUTION. This reduces the number of times the shader programs running on the GPU must be executed.
    • Number of samples (slices): This is controlled by the numSlices and numSlicesControl fields. Note that better image quality can obtained with the same number of samples by enabling options like preintegrated rendering (see SoVolumeRenderingQuality) and/or the BOUNDARY_ALIGNED setting for samplingAlignment. The number of samples can be automatically decreased when interacting using an SoInteractiveComplexity node.

      We recommend to set the numSlicesControl field to AUTOMATIC and the numSlices field to -1. The number of samples will be computed based on the dimensions of the volume (number of voxels on each axis), the SoComplexity.value setting and the viewing direction. If the viewing direction changes, the number of samples will be automatically adjusted.

    • Opacity: Increasing the number of opaque, or nearly opaque, voxels in the volume (using SoTransferFunction) will generally improve performance because the sampling rays can terminate sooner. See also IVVR_ALPHA_THRESHOLD_INTERACTIVE in SoPreferences.

      If you are using a completely opaque transfer function, for example with a "volume probe", SoVolumeSkin will generate the same image much faster.

    • Rendering options: Many of the advanced rendering options and rendering effects enabled by SoVolumeRenderingQuality have an additional performance cost. These include lighting, edge coloring, boundary opacity, cubic interpolation and gradient quality. These settings can be automatically changed while interacting using an SoInteractiveComplexity node.
    • Tile size: For backward compatibility, the default tile size is still only 64. This is quite small for modern CPU/GPU hardware. The smaller the tile size, the larger the total number of tiles that must be managed by VolumeViz. This overhead can be significant, especially for operations that require reloading the data textures on the GPU, for example, changing the data range (SoDataRange). For smaller volumes, like 512^3, it can be efficient to set the tile size large enough to contain the entire volume. For very large volumes, larger tile sizes are efficient for SoVolumeRender but somewhat inefficient for slice rendering because complete tiles must be loaded even though the slice only uses part of the data (see also SoSlice.largeSliceSupport). Applications should experiment.

      For volumes stored in LDM file format, the tile size must be specified when the volume is converted to LDM (see SoConverter and the "-t" option). For other data data formats the tile size can be specified using the field SoVolumeData.ldmResourceParameters, but only after setting the field SoDataSet.filename or calling the setReader() method.

    • Tile cache policy: It specifies how the tiles are stored in CPU memory. The selected policy can significantly impact the data loading performance versus the CPU memory footprint. See SoLDMResourceParameters.tileCachePolicy for detail.
    • If rendering performance is too slow, it may be necessary to render with high quality settings when the user is not interacting with the scene, but temporarily switch to high performance (lower quality) settings when the user is interacting. Open Inventor automatically sets "interactive mode" when the user is moving the camera or moving a dragger. The application can explicitly set interactive mode, for example while the user is moving a slider in the user interface. Some important tools are:

    # Limitations:

    • Multi-thread rendering: Unlike most Open Inventor nodes, VolumeViz nodes do not support simultaneous rendering in multiple threads (even when Open Inventor is initialized using one of the initThread() methods).
    • Geometric transforms: The volume size (extent in 3D space) and orientation can be modified by transformation nodes in the scene graph just like any geometry. For a volume this in turn modifies the appearance of volume rendering nodes like SoVolumeRender. However please **note:** The same transformation must be applied to the volume data node and all volume rendering nodes associated with that volume. So effectively any transformation nodes that affect the volume must be placed **before** the volume data node.
    • Multiple dataset: The field dataSetIds has limitations described here
    • Render modes: When using one of the projection render mode (i.e. MIN_INTENSITY_PROJECTION, MAX_INTENSITY_PROJECTION, SUM_INTENSITY_PROJECTION or AVERAGE_INTENSITY_PROJECTION):

    # Example:

    For simple data sets, a basic VolumeViz rendering could be achieved with only a few nodes: minimally an SoVolumeData node to identify the data set and one rendering node. However most data sets need at least some of the additional nodes shown here in order to get a correct and useful rendering. Most applications will need additional nodes to take advantage of region of interest, interaction, clipping and other VolumeViz features. Please consider the code shown here as simply a guideline and a starting point for exploring the many powerful features available in Open Inventor.

    Note that some of the property nodes (data, material, color map, etc) will typically be shared by multiple rendering nodes. For example the volume data usually only needs to be loaded once, using a single SoVolumeData node. Multiple slices and/or regions can be rendered using that data node and they may use the same transfer function or each have their own.

    Also note that this example is for a data volume, not a label volume. Please see the notes about label volumes following the code block.

     // Keep volume viz separate from geometry
 SoSeparator volSep = new SoSeparator();
   root.addChild(volSep);

 // Decrease the quality while moving to have better interactivity
 SoInteractiveComplexity interact = new SoInteractiveComplexity();
   // Decrease the "number of samples"
   interact.fieldSettings.set1Value( 0, "SoComplexity value 0.2 0.5" );
   // Decrease interpolation quality.
   interact.fieldSettings.set1Value( 1, "SoVolumeRender interpolation LINEAR CUBIC" );
   // Don't wait before returning to full quality rendering.
   interact.refinementDelay.setValue( 0 );
   volSep.addChild( interact );

 // Complexity node for the interact node to control.
 SoComplexity volComp = new SoComplexity();
   volSep.addChild( volComp );

 // Load volume data
 SoVolumeData volData = new SoVolumeData();
   volData.fileName.setValue( "$OIVJHOME/data/VolumeViz/3DHead.vol" );
   volSep.addChild( volData );

 // Set range of data values to visualize.
 // Not required for 8-bit voxels, critical for larger data types.
 // The getMinMax() call may be expensive for non-LDM file formats.
 SoDataRange volRange = new SoDataRange();
   if (volData.getDatumSize() > 1) {
     double[] minmax;
     minmax = volData.getDoubleMinMax();
     volRange.min.setValue( minmax[0] );
     volRange.max.setValue( minmax[1] );
   }
   volSep.addChild( volRange );

 // Load constant intensity with alpha ramp
 SoTransferFunction volTF = new SoTransferFunction();
   volTF.predefColorMap.setValue( SoTransferFunction.PredefColorMaps.GRAY );
   volTF.minValue.setValue( 10 ); // Make "noise" voxels transparent
   volSep.addChild( volTF );

 // Display volume at full intensity
 SoMaterial volMat = new SoMaterial();
   volMat.diffuseColor.setValue( 1, 1, 1 );
   volSep.addChild( volMat );

 // Volume rendering settings
 SoVolumeRenderingQuality volQual = new SoVolumeRenderingQuality();
   // Remove border artifacts while moving.
   volQual.interpolateOnMove.setValue( true );
   // Higher quality rendering
   volQual.preIntegrated.setValue( true );
   // Optional: Enable screen space lighting
   volQual.deferredLighting.setValue( true );
   // Optional: If using gradient lighting, increase quality
   volQual.surfaceScalarExponent.setValue( 5 );
   volSep.addChild( volQual );

 // Display volume rendering
 SoVolumeRender volRend = new SoVolumeRender();
   // Let Inventor compute best number of slices
   volRend.numSlicesControl.setValue( SoVolumeRender.NumSlicesControls.AUTOMATIC );
   // Optional: Use lower screen resolution while moving.
   volRend.lowResMode.setValue( SoVolumeRender.LowResModes.DECREASE_SCREEN_RESOLUTION );
   volRend.lowScreenResolutionScale.setValue( 2 );
   // Remove "slicing" artifacts
   volRend.samplingAlignment.setValue( SoVolumeRender.SamplingAlignments.BOUNDARY_ALIGNED );
   volSep.addChild( volRend );

    # Label volumes

    A label volume, also known as a label field, is usually the result of doing some sort of segmentation on a data volume. Each voxel value is an integer label (id) identifying which material, object, etc that the voxel belongs to. There could be 100's or 1000's of labels, but there might be as few as 8 label values. For example, a simple label volume might have 7 opaque materials plus plus an "exterior" material which is completely transparent. Conceptually, there is one big difference between a (typical) data volume and a label volume. A data volume is conceptually a set of discrete samples taken from a continuous scalar field. So we know the exact value at the center of each voxel and interpolate between those values to get the value at any position in between voxels. In a label volume we normally consider each voxel to belong completely to one material, so the value is constant until we cross the boundary into the next voxel. Therefore we do not want to interpolate the label values.

    When rendering a label volume, make the following changes to the above example:

    If rendering isosurfaces (SoVolumeIsosurface), set the field SoVolumeRenderingQuality.segmentedInterpolation to true.

    It is also important to set the data range, texture precision and color map size carefully. Please see the label volume discussion in SoTransferFunction.

    File format/default:

    VolumeRender {

      interpolation LINEAR
      lighting false
      lightDirection -1, -1, -1
      lightIntensity 1
      numSlices 0
      numSlicesControl AUTOMATIC
      samplingAlignment BOUNDARY_ALIGNED
      lowResMode DECREASE_NONE
      lowScreenResolutionScale 1
      subdivideTile false
      projectedTileSubdivision 1
      fixedNumSlicesInRoi false
      opacityCorrection true
      renderMode VOLUME_RENDERING
      dataSetIds []
    }

    Action behavior:

    SoGLRenderAction Draws a volume-rendered image based on current SoVolumeData.

    SoGetBoundingBoxAction Computes the bounding box that encloses the volume.

    SoRayPickAction Picking always returns the first non-transparent voxel intersected by the pick ray. The old behavior can be restored by using an SoPickStyle node set to BOUNDING_BOX.

    See Also:
    SoVolumeData, SoTransferFunction, SoROI, SoVolumeShader, SoVolumeIsosurface, SoVolumeRenderingQuality, SoProjection, SoVolumeRendering, SoUniformGridClipping, SoVolumeClippingGroup, SoInteractiveComplexity

    • Field Detail

      • dataSetIds

        public final SoMFInt32 dataSetIds
        Specifies the list of volumes on which volume rendering is applied. This field specifies a list of datasets using their dataset id (see SoDataSet.dataSetId and SoDataSetId.id). It defines the geometry of the volume rendering as the union of the extents of each dataset specified in this list.

        For example, when equal to [1, 2], volume rendering is applied on the union of the extents of the datasets of ids 1 and 2.

        Notes:

        • The SoROI node affects the union of the extents.
        • This field is useful only when datasets with different extents are present inside a SoMultiDataSeparator (see MULTIPLE_INDEPENDENT_VOLUMES section).
        • A value of 0 in the list identifies the last SoVolumeData node on state.
        • If this field is empty, the volume rendering is applied to the union of the extents of each dataset on state.

        Limitations: This field is ignored and only the last dataset on state is used for the volume rendering when:

        The default value is an empty array.

        Since:
        Open Inventor 10.12.0

      • numSlicesControl

        public final SoSFEnum<SoVolumeRender.NumSlicesControls> numSlicesControl
        Controls how the number of samples along each ray is determined.
        . Default is AUTOMATIC. Generally increasing the number of samples will increase the image quality, but decrease the performance (frames per second).

        We recommend to set the numSlicesControl field to AUTOMATIC and the numSlices field to 0. The number of samples will be computed based on the dimensions of the volume (number of voxels on each axis), the SoComplexity.value setting and the viewing direction. If the viewing direction changes, the number of samples will be automatically adjusted.

      • numSlices

        public final SoSFInt32 numSlices
        Specifies the number of samples along each ray.
        The default is -1, which means to use the volume dimensions (number of voxels on each axis) when the numSlicesControl field is set to AUTOMATIC.

        NOTE: This value is not used if the numSlicesControl field is set to ALL (the default for that field).

      • lowResMode

        public final SoSFBitMask<SoVolumeRender.LowResModes> lowResMode
        Sets the method to use when moving in low resolution. . Default is DECREASE_NONE.

        • DECREASE_NONE: Default. Do not use low resolution mode when moving (i.e., when the viewer is moving the camera).
        • DECREASE_SLICES: Decrease the number of samples according to SoComplexity.value when moving. It has no effect if numSlicesControl is set to AUTOMATIC because in this case, VolumeViz always uses the SoComplexity node to compute the number of samples.
        • DECREASE_SCREEN_RESOLUTION: Downscale the screen resolution of the volume when moving by the factor specified in lowScreenResolutionScale. This is the recommended setting when rendering performance is too low.

        Since:
        Open Inventor 7.0

    • lowScreenResolutionScale

      public final SoSFInt32 lowScreenResolutionScale
      If lowResMode is DECREASE_SCREEN_RESOLUTION, render the volume at a lower screen resolution. when moving. The resolution used is the current screen resolution divided by lowScreenResolutionScale. Default is 1. A value of 2 or 4 is recommended if using this option.

      Since:
      Open Inventor 7.0

    • subdivideTile

      public final SoSFBool subdivideTile
      If true, LDM tiles will be subdivided for rendering. Fully transparent sub-tiles won't be rendered, thus (potentially) increasing the speed of the rendering if an expensive shader is being used and significant regions of the volume are fully transparent. However using false is faster if the user will frequently change the data range (e.g. window center/width in medical applications). SubTileDimension can be changed using SoVolumeData node's ldmResourceParameters field. Default is false.

      See the 'subtileDimension' field in SoLDMResourceParameters. If the tileDimension is larger than the default value, then the subtileDimension should also be larger to avoid performance issues.



      Since:
      Open Inventor 7.0

    • fixedNumSlicesInRoi

      public final SoSFBool fixedNumSlicesInRoi
      When this field is set to false (the default), the number of samples set by numSlices is the number of samples used for the region defined by the current ROI. Therefore the number of samples may change when the ROI size changes. When true, numSlices is the number of samples for the whole volume. In this case the sample density is constant, independent of the ROI size. Default is false.

      Since:
      Open Inventor 7.1

    • projectedTileSubdivision

      public final SoSFInt32 projectedTileSubdivision
      When doing volume projection (see SoProjection), only the geometry (corner vertices) of the LDM tiles are projected, not the individual voxels. This can produce an imprecise projected volume when using large LDM tiles or low resolution levels (where the LDM tiles are larger).

      This field controls how many times the tile geometry will be subdivided (producing more vertices) before being projected. Subdivision gives a smoother, more accurage shape, but requires much more computational power and may reduce rendering performance. Default is 1 (subdivide once).

      NOTE: This field is ignored in raycasting mode (the default).



      Since:
      Open Inventor 7.1

    • opacityCorrection

      public final SoSFBool opacityCorrection
      Controls whether opacity correction is done.
      If true, opacity is automatically adjusted to give similar appearance no matter how many samples are used. If false, opacity is not corrected and increasing the number of samples will increase the opacity. Default is true.

      Generally this field should always be set to true.

      Since:
      Open Inventor 8.1

    • renderMode

      public final SoSFEnum<SoVolumeRender.RenderModes> renderMode
      Specifies how the voxels along each sampling ray are combined to form the final image. . Default is VOLUME_RENDERING (alpha blending).

      Since:
      Open Inventor 9.1

    • samplingAlignment

      public final SoSFEnum<SoVolumeRender.SamplingAlignments> samplingAlignment
      Specifies which technique to use to align rayCast samples. . Default is BOUNDARY_ALIGNED.

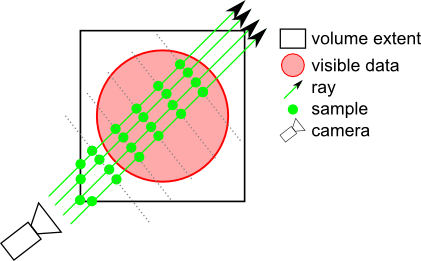

      VIEW_ALIGNED: Samples are located on planes perpendicular to the view direction.

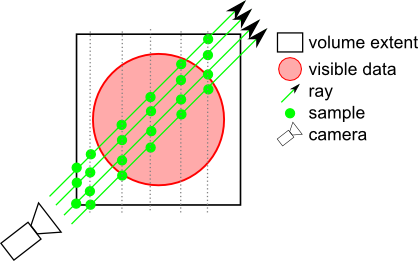

      DATA_ALIGNED: Samples are located on planes perpendicular to one axis of the volume.

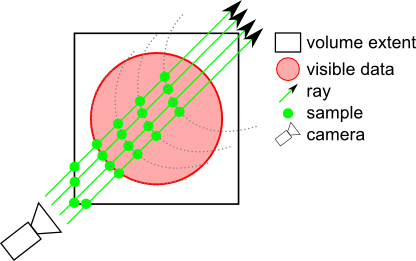

      BOUNDARY_ALIGNED: Samples are located on shells aligned with the volume's internal "boundary". Each ray begins sampling at the first intersected voxel that has an alpha value > opacityThreshold. This technique greatly decreases "slicing" artifacts even with a relatively small number of slices. It is strongly recommended to enable this mode when using SoVolumeRenderingQuality.ambientOcclusion.

      SMOOTH_BOUNDARY_ALIGNED: Similar to BOUNDARY_ALIGNED but uses a cubic interpolation to compute the boundary, giving smoother results when using SoVolumeRenderingQuality.deferredLighting.

      NOTE: If an SoVolumeGroup or SoProjection node applies to this node, the field is ignored and VIEW_ALIGNED is used.

      Since:
      Open Inventor 9.1

    • opacityThreshold

      public final SoSFFloat opacityThreshold
      Specifies a threshold opacity (alpha) value that defines voxels considered to be "solid" (non-transparent). Many volume data sets are composed of objects of interest floating in an approximately transparent "fog", depending on opacity values in the transfer function. Several effects like BOUNDARY_ALIGNED sampling, ambientOcclusion and deferredLighting need to locate the boundary between solid objects and ambient fog. This field defines a threshold in the range [0, 1]. Voxels are considered solid if their alpha value is greater than opacityThreshold.

      A value of 0.0 generally works well with a transfer function containing "binary" opacity (a transfer function with only fully transparent or fully opaque colors). If this is not the case, you should set this value according to your visualization parameters. Generally between 0.1 and 0.5.

      Default is 0.1, Ignore low visibility voxels.

      Since:
      Open Inventor 9.3

    • lighting

      @Deprecated(since="8.5.0.0")
public final SoSFBool lighting
      Deprecated.
      As of Open Inventor 8.5.0.0. Use SoVolumeRenderingQuality.lighting field instead.
      Indicates if lighting is required. Default is false.
      NOTE: Better performance for lighting can be obtained using the SoVolumeRenderingQuality node. Using SoVolumeRenderingQuality, lighting is determined by the first light in the scene graph (similar to other geometry) and the lighting computation is done on the GPU (therefore SoVolumeRenderingQuality requires programmable shaders).

      Using the lighting field, lighting is determined by the lightDirection field and the lighting computation is done on the CPU. This requires RGBA textures to be loaded on the GPU which uses more texture memory and requires more time to modify the transfer function (color map) because textures must be reloaded. Note that activating or deactivating lighting will also normally force the textures to be recreated, which may be slow.

      NOTE: Only set the lighting field to true in SoVolumeRenderingQuality or SoVolumeRender. Do not set both lighting fields to true.

      Warning Deprecated since Open Inventor 8500. Use SoVolumeRenderingQuality.lighting field instead.

    • lightDirection

      @Deprecated(since="8.5.0.0")
public final SoSFVec3f lightDirection
      Deprecated.
      As of Open Inventor 8.5.0.0. Use SoVolumeRenderingQuality.lighting field instead.
      Light direction (relative to the volume). The default is (-1,-1,-1). Only affects CPU computed lighting (i.e. when the lighting field is true).

      Warning Deprecated since Open Inventor 8500. Use SoVolumeRenderingQuality.lighting field instead.

    • lightIntensity

      @Deprecated(since="8.5.0.0")
public final SoSFFloat lightIntensity
      Deprecated.
      As of Open Inventor 8.5.0.0. Use SoVolumeRenderingQuality.lighting field instead.
      Light intensity in the range [0-1]. The default is 1. Only affects CPU computed lighting (i.e. when the lighting field is true).

      Warning Deprecated since Open Inventor 8500. Use SoVolumeRenderingQuality.lighting field instead.

    • viewAlignedSlices

      @Deprecated(since="9.1.0.0")
public final SoSFBool viewAlignedSlices
      Deprecated.
      As of Open Inventor 9.1.0.0. Use samplingAlignment field instead.
      Indicates if samples should be computed in a view-aligned manner. Default is true.

      NOTE: If an SoVolumeIsosurface, SoVolumeRenderingQuality or SoProjection node applies to this node, this field is ignored and view-aligned samples are used.

      Warning Deprecated since Open Inventor 9100. Use samplingAlignment field instead.

  • Constructor Detail

    • SoVolumeRender

      public SoVolumeRender()
      Constructor.
